Luggar > Underground Wire Locator Kit
Note: All pictures shown are illustration purpose only. Actual product may vary due to product enhancement.

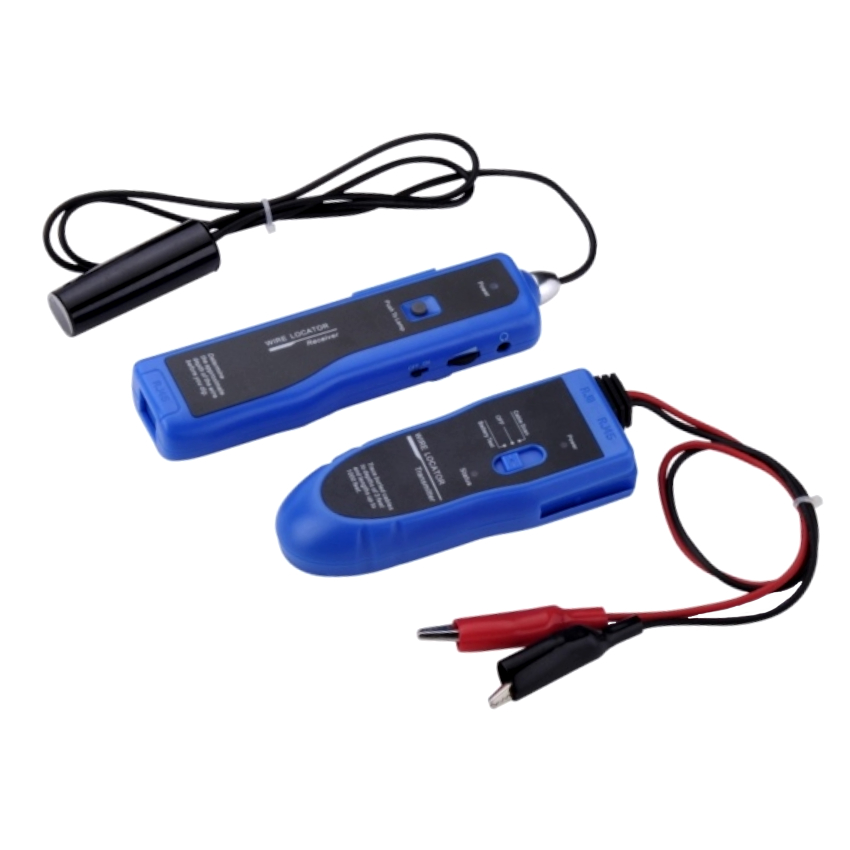

Underground Wire Locator Kit

  • Underground Network Wire Tracker Kit
  • Locating & tracking buried and hidden wires – Underground or in-wall wires
  • Determining Which Receptacles are on specific circuits.
  • Pinpointing Drill Sites before drilling.
  • Detecting range is 3 feet and cable lenth 3000 feet
  • Widely applied in pet fence
  • White LED Flash Light.
SKU: HP-TRACK-NF816 Categories: , ,
Share:

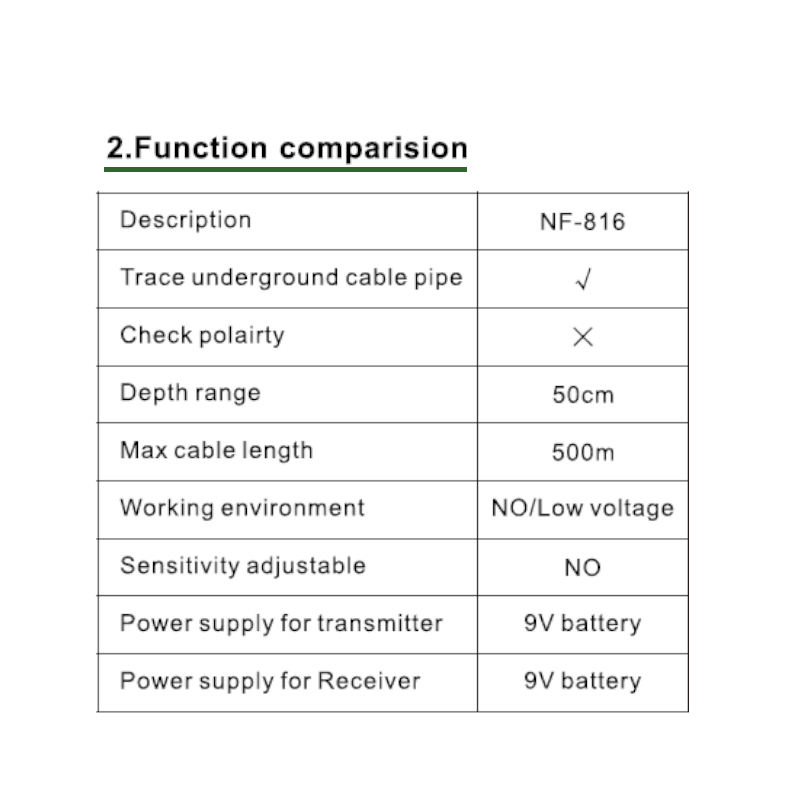

Specification
Technical specifications:
NF-816 Transmitter specifications
Tone frequency: 200kHz
Max. length distance (m): 500 (1640 feet)
Max. depth distance (cm): 50 (20'')
Max. working current: ≤ 70mA
Tone mode: 1 Tone
Max. signal voltage: 15Vp-p
LED lights display: White LED Flash Light
Voltage protection: AC 60V/DC 42V
Battery Type: DC9.0V (NEDA 1604/6F22) x 1pc
Dimensions (mm): L 49 × W 135 × D 33
NF-816 Receiver specifications
Frequency: 200kHz
The Max. working current: ≤ 70mA
Earphone jack: 1
Battery Type: DC9.0V (NEDA 1604/6F22) x 1pc
Dimensions (mm): L 43 × W 168× D 27







Attntion:

  • Do not connected higt voltage lines to avoid buring out the machine
  • Put into the right place to avoid hurting other, because of the sharp part
  • Connected the cable to the right port
  • Read the user manual before use it



includded:

  • NF-816 Transmitter x 1
  • NF-816 Receiver x 1
  • Earphone x 1
  • DC9.0V Battery x 2

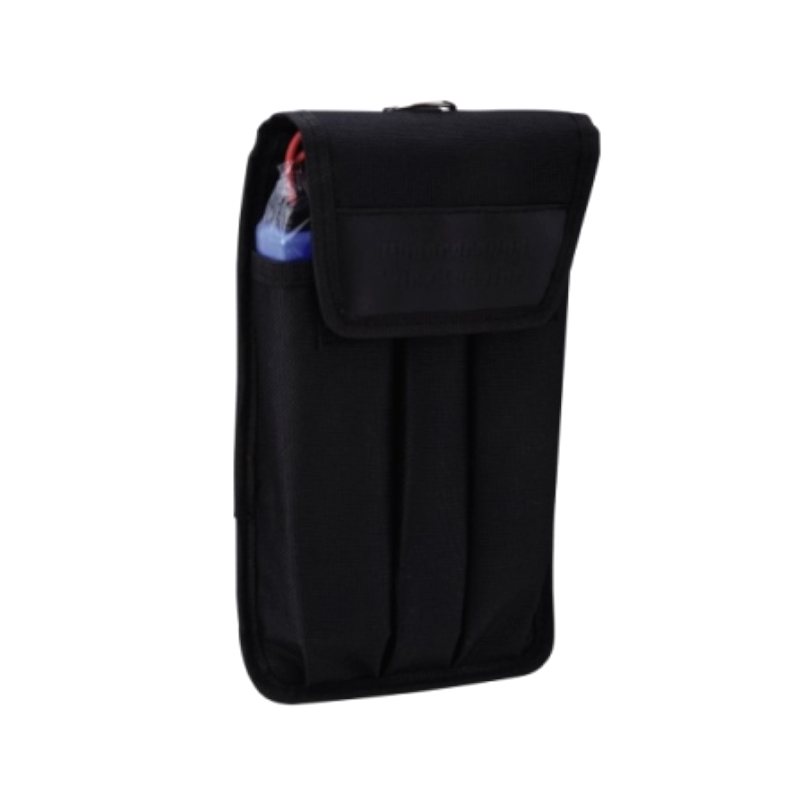

  • Case x 1
  • User manual



Product Files
Product fileView FileDownload File
