Wall Mounting Rack enclosure Cabinets are designed to integrate wall mounting, which allows easy access to the network equipment:
This rack cabinets series includes SKU of various depths
and also in this series are rack cabinets with additional Rack Units (heights).
Product structure | |
Product Type: | Wall rack cabinet |
Rack Units: | 20U |
Front Door: | 5mm transparent glass door |
Door hinges with 130 degrees operation angle | |
Lockable door | |
Side Panels: | Two sealed metal side panels |
Removable side panels with plastic fasteners | |
Lockable Side panels | |
Back Panel: | Sealed metal panel |
Removable back panel by screws | |
included: | 1 x Shelf |
1 x Fan | |
Rear heavy duty hinge for safe wall mounting | |
wire path | |
can be added: | Shelves |
Product Material | |
Material: | SPCC - high quality cold-rolled steel |
Thickness: | Mounting profile 2.0m |
Certificates | |
CE , ROSH |
Product Type: | 20U Wall Rack Cabinet - 500mm Depth | ||

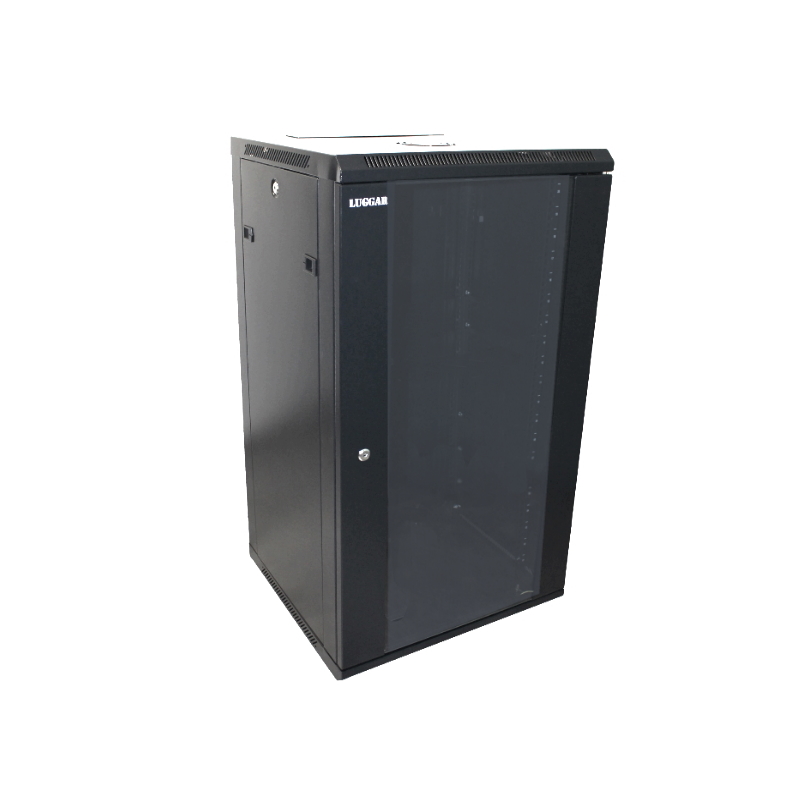

SKU: | HI-20U-500-WL-B | Color: | Black |

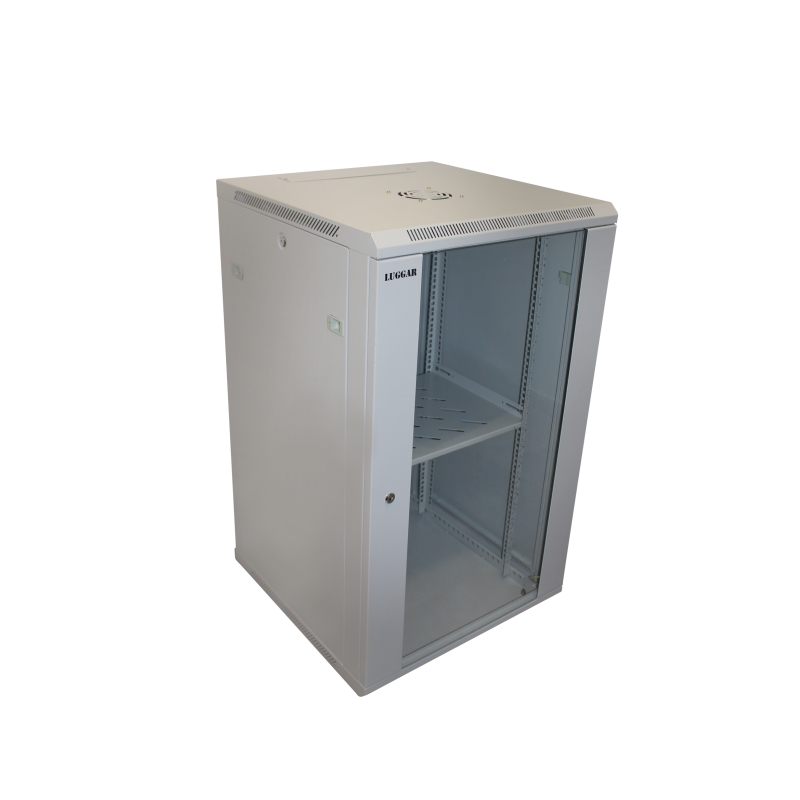

SKU: | HI-20U-500-WL-G | Color: | Gray |
Dimensions (mm): | L 500 × W 600× H 990 | ||
Weight: | 31kg (Approximate, without additional accessories) | ||
Maximum Weight Capacity: | 60kg |
Product Type: | 20U Wall Rack Cabinet - 600mm Depth | ||
SKU: | HI-20U-600-WL-B | Color: | Black |
SKU: | HI-20U-600-WL-G | Color: | Gray |
Dimensions (mm): | L 600 × W 600× H 990 | ||
Weight: | 32kg (Approximate, without additional accessories) | ||
Maximum Weight Capacity: | 60kg |
Product file - 20U Wall Rack Cabinet 500mm Depth - Black Color | View File | Download File |
Product file - 20U Wall Rack Cabinet 600mm Depth - Black Color | View File | Download File |
Product file - 20U Wall Rack Cabinet 500mm Depth - Gray Color | View File | Download File |
Product file - 20U Wall Rack Cabinet 600mm Depth - Gray Color | View File | Download File |
